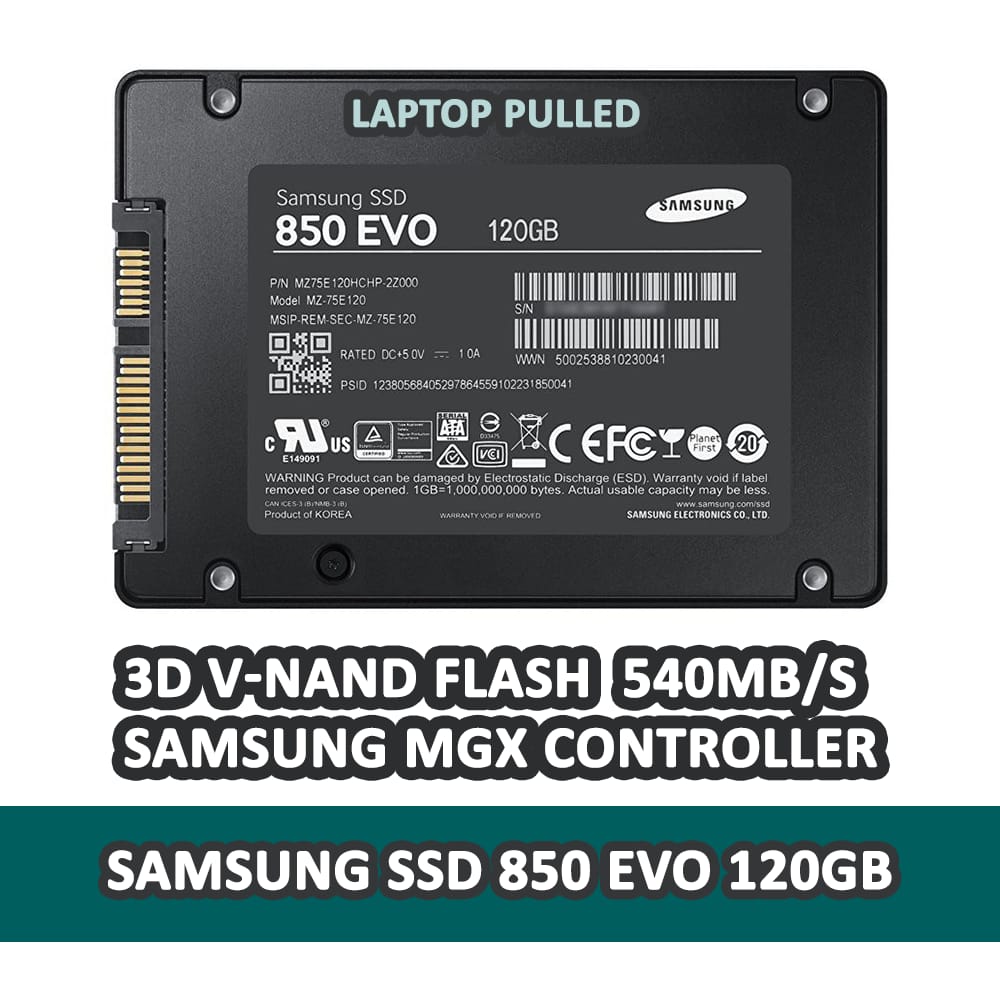

Samsung SSD 850 EVO 120GB Branded Original-Pulled
Samsung SSD 850 EVO Specifications
- Capacities: 120GB, 250GB, 500GB, 1TB
- Dimensions (LxWxH): 100 x 69.85 x 6.8 (mm)
- Interface: SATA 6Gb/s (compatible with SATA 3Gb/s and SATA 1.5Gb/s)
- Form: Factor 2.5 inch
- Controller
- 120/250/500GB : Samsung MGX controller
- 1TB: Samsung MEX controller
- NAND Flash Memory: Samsung 32-layer 3D V‐NAND
- DRAM Cache Memory: 256MB (120GB) or 512MB (250GB&500GB) or 1GB (1TB) LPDDR2
- Performance
- Sequential Read: Max. 540 MB/s
- Sequential Write: Max. 520 MB/s
- 4KB Random Read (QD1): Max. 10,000 IOPS
- 4KB Random Write(QD1): Max. 40,000 IOPS
- 4KB Random Read (QD32):
- Max. 98,000 IOPS (500GB/1TB)
- Max. 97,000 IOPS (250GB)
- Max. 94,000 IOPS (120GB)
- 4KB Random Write(QD32):
- Max. 90,000 IOPS (500GB/1TB)
- Max. 88,000 IOPS (120GB/250GB)
- Data Security
- AES 256‐bit Full Disk Encryption (FDE)
- TCG/Opal V2.0, Encrypted Drive (IEEE1667)
- Weight Max.: 66g (1TB)
- Reliability MTBF: 1.5 million hours
- TBW
- 120/250GB: 75TBW
- 500GB/1TB: 150 TBW
- Power Consumption
- Active Read/Write (Average): Max. 3.7W(1TB)/ Max. 4.4W(1TB)
- Idle: Max. 50mW
- Device Sleep: 2mW (120/250/500GB), 4mW(1TB)
- Supporting features: TRIM (Required OS support), Garbage Collection, S.M.A.R.T
- Temperature
- Operating: 0°C to 70°C
- Non‐Operating: ‐40°C to 85°C
- Humidity: 5% to 95%, non‐condensing
- Vibration:
- Non‐Operating: 20~2000Hz, 20G
- Shock Non‐Operating: 1500G , duration 0.5m sec, 3 axis
-
The 850 EVO optimizes performance for your daily computing tasks, boasting sequential write speeds up to 520 MB/s with TurboWrite technology and sequential read speeds of up to 540 MB/s. Plus, RAPID mode further boosts performance for up to 2x faster* data processing speeds on a system level by utilizing unused PC memory as cache storage.
* These results were determined by PCMARK®7 testing with scores of 7,519 and 19,506 with RAPID mode off and on using a 2.5-inch 500 GB drive
- Powered by Samsung V-NAND Technology. Optimized Performance for Everyday Computing.
- Incredible Sequential Read/Write Performance: Up to 540MB/s and 520MB/s Respectively, and Random Read/Write IOPS Performance: Up to 94K and 88K Respectively
- Endurance, Reliability, Energy Efficiency, and a 5-Year Limited Warranty
- Included Contents: 2.5” (7mm) SATA III (6GB/s) SSD, User Manual, & Samsung Data Migration Software CD. (All Other Cables, Screws, and Brackets Not Included)
- Windows 10/8/7/Vista SP1 and Above (32/64 bit), Windows Server 2008 (32/64 bit), Linux Compatible.
- Made in China
-
Samsung SSD 850 EVO 120GB Branded Original-Pulled
- For more information about Samsung evo 850 v nand chip technology click here
